ALIGN · Imaging wheel alignment system
9000 Mobile
TreadPlus 9000 Mobile imaging wheel alignment system with built-in posts, mobile cabinet and SureAlign V55 Elite for multi-bay workshop use.
Product overview
Built for professional service.
TreadPlus 9000 Mobile imaging wheel alignment system with built-in posts, mobile cabinet and SureAlign V55 Elite for multi-bay workshop use. Final specifications and regional availability are confirmed with the quotation.
Published specifications
9000 Mobile at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Wheel alignment system
- Model
- 9000 Mobile
- Software / platform
- SureAlign™ V55 Elite
- Measurement system
- Automatic imaging target tracking with self-tracking cameras
- Cabinet
- Mobile cabinet with storage and built-in camera posts
- Post
- Motorized with automatic camera tracking
- Monitor
- 32″ display
- Software
- SureAlign™ V55 Elite
- Installation
- Mobile cabinet with built-in camera posts; no floor drilling
- Targets
- BDM 4-target set
- Wheel clamp range
- 13″–25″ standard range
- Site note
- Requires stable, level working area; avoid drains, expansion joints and floor movement
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.

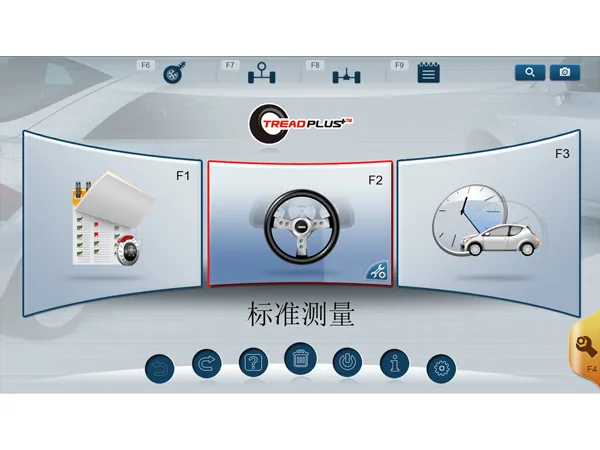

SureAlign software
Understand the workflow behind the readings.
Explore practical explanations of measurement, compensation, adjustment and reporting functions. Availability varies by the 9000 Mobile software tier, hardware and selected options.
Lift Levelness
Establish a calibrated reference plane so lift or floor slope does not become part of the alignment reading.
How it works →MeasurementSpatial Dynamic
Maintain the calibrated measurement reference while the vehicle rolls or the lift structure changes slightly under load.
How it works →MeasurementCaster Sweep Options
Match the caster sweep range and movement style to the vehicle, bay and required verification level.
How it works →Adjustment ToolsToe+
Adjust front toe while SureAlign guides steering-centre position, without relying on a conventional steering-wheel holder for the supported procedure.
How it works →ProductivityQR Remote
Use a compatible phone or tablet as a local SureAlign display and remote control at the adjustment point.
How it works →ProductivityCustomizable Reports
Adapt the alignment report to the workshop, customer and level of technical detail required.
How it works →Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Frequently asked questions
About the 9000 Mobile.
Does “Mobile” mean the aligner is portable?
No. The camera posts are built into a wheeled cabinet so the complete system can be repositioned on a suitable level floor; it is not a portable frame aligner.
Which software version is used on the 9000 Mobile?
The current public configuration uses SureAlign™ V55 Elite.
What site condition is required?
The working area must be stable and level. Drains, expansion joints and floor movement can affect measurement repeatability and should be avoided.
