Optical measurement
Camera Vision
Calibrated camera measurement for wheel alignment, tread-depth inspection and visual workshop workflows.
Technology principle
See precisely. Measure repeatably.
Camera Vision combines calibrated cameras, optical targets, structured light, image processing and pattern recognition. In tread-depth scanning, a projected line reveals the tire profile while the camera observes and calculates the surface geometry.
- 01
Alignment imaging

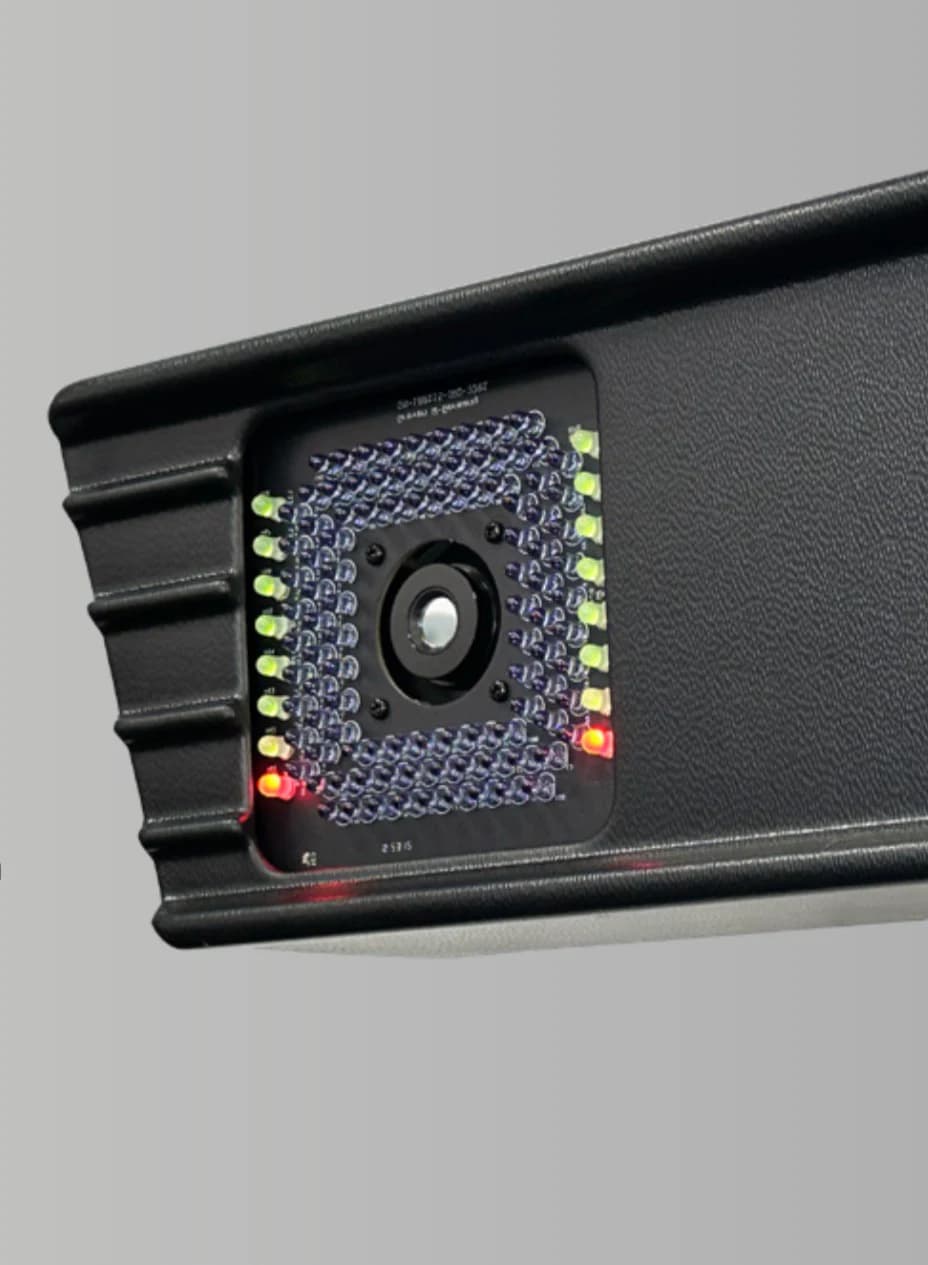

Track target position and wheel geometry through calibrated multi-camera measurement.
- 02
Projected-line imaging
Analyze the deformation of a projected line to reconstruct the tread profile.
- 03
Pattern recognition
Convert visual information into repeatable measurements and technician guidance.
Applications
Where Camera Vision is used.
One measurement principle supports alignment target tracking, drive-over tire inspection and future visual condition workflows.
Technology and application
Choose technology around the workshop objective.
TreadPlus can help connect measurement, equipment and support to the services your workshop intends to provide.
