ALIGN · Imaging wheel alignment system
9000 Essential
Professional TreadPlus 9000 Essential imaging wheel alignment system with SureAlign V45 Pro, motorized camera support and cabinet-based workflow.
Product overview
Built for professional service.
Professional TreadPlus 9000 Essential imaging wheel alignment system with SureAlign V45 Pro, motorized camera support and cabinet-based workflow. Final specifications and regional availability are confirmed with the quotation.
Published specifications
9000 Essential at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Wheel alignment system
- Model
- 9000 Essential
- Software / platform
- SureAlign™ V45 Pro
- Measurement system
- Imaging target tracking / optical 4-wheel measurement
- Cabinet
- Wheeled rolling cabinet with PC and printer storage
- Post

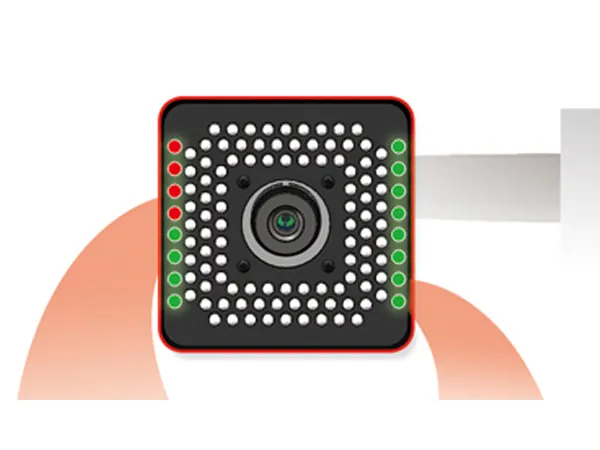

- Floor-bolted post with motorized camera positioning
- Monitor
- 27″ display
- Installation
- Floor drilling required; post is bolted to the floor and the cabinet can be positioned to the side within cable length
- Targets
- Checkerboard 4-target set
- Wheel clamp range
- 13″–25″ standard range
- Vehicle coverage
- Passenger vehicles, light trucks and SUVs
- Options
- QC15 / QC20 tire-grip clamp compatible
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.
SureAlign software
Understand the workflow behind the readings.
Explore practical explanations of measurement, compensation, adjustment and reporting functions. Availability varies by the 9000 Essential software tier, hardware and selected options.
Lift Levelness
Establish a calibrated reference plane so lift or floor slope does not become part of the alignment reading.
How it works →MeasurementSpatial Dynamic

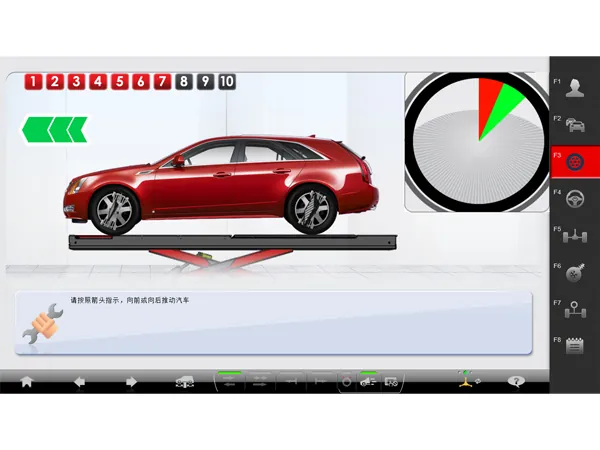

Maintain the calibrated measurement reference while the vehicle rolls or the lift structure changes slightly under load.
How it works →MeasurementCaster Sweep Options
Match the caster sweep range and movement style to the vehicle, bay and required verification level.
How it works →Adjustment ToolsToe+
Keep the required toe information visible while working through the dedicated Toe+ adjustment routine.
How it works →ProductivityQR Remote
Use a compatible phone or tablet as a local SureAlign display and remote control at the adjustment point.
How it works →ProductivityCustomizable Reports
Adapt the alignment report to the workshop, customer and level of technical detail required.
How it works →Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Frequently asked questions
About the 9000 Essential.
Where does the 9000 Essential fit in the 9000 Series?
It is the cabinet-based daily-use model for workshops that want motorized camera positioning and a conventional rolling workstation.
Which software version is used on the 9000 Essential?
The current public configuration uses SureAlign™ V45 Pro.
What vehicles can the standard configuration measure?
The published configuration covers passenger vehicles, light trucks and SUVs within the supported clamp and bay ranges.
