ALIGN · Imaging wheel alignment system
9000 AIO

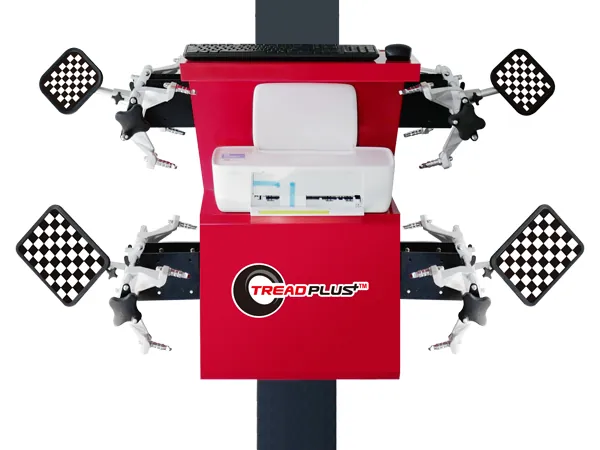

Compact imaging wheel alignment system with SureAlign V45 Pro and a fixed workstation rack mounted directly to the camera post.
Product overview
Built for professional service.
Compact imaging wheel alignment system with SureAlign V45 Pro and a fixed workstation rack mounted directly to the camera post. Final specifications and regional availability are confirmed with the quotation.
Published specifications
9000 AIO at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Wheel alignment system
- Model
- 9000 AIO
- Software / platform
- SureAlign™ V45 Pro
- Measurement system
- Imaging target tracking with optical 4-wheel measurement
- Workstation
- Fixed rack mounted directly to the camera post
- Post
- Floor-bolted post with motorized camera positioning
- Monitor
- 23″ standard / 27″ optional
- Installation
- Floor drilling required; rack is mounted directly to the post

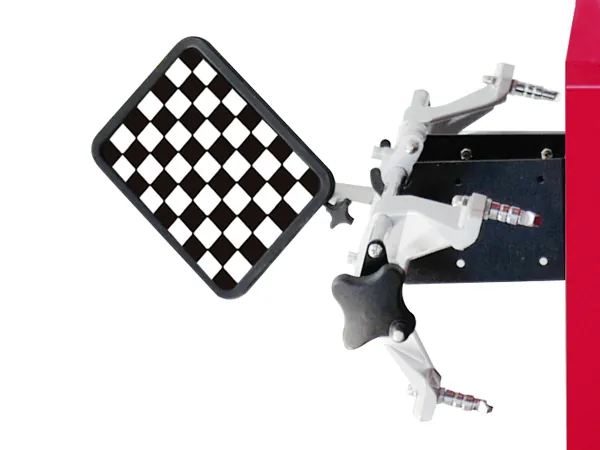

- Targets
- Compact checkerboard 4-target set
- Wheel clamp range
- 13″–25″ standard range
- Vehicle coverage
- Passenger vehicles, light trucks and SUVs within clamp range
- Power
- 120–240V universal; regional plug and compliance configuration may vary
- Options
- QC15 / QC20 tire-grip clamps available separately
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.
SureAlign software
Understand the workflow behind the readings.
Explore practical explanations of measurement, compensation, adjustment and reporting functions. Availability varies by the 9000 AIO software tier, hardware and selected options.
Lift Levelness
Establish a calibrated reference plane so lift or floor slope does not become part of the alignment reading.
How it works →MeasurementSpatial Dynamic
Maintain the calibrated measurement reference while the vehicle rolls or the lift structure changes slightly under load.
How it works →MeasurementCaster Sweep Options
Match the caster sweep range and movement style to the vehicle, bay and required verification level.
How it works →Adjustment ToolsToe+
Keep the required toe information visible while working through the dedicated Toe+ adjustment routine.
How it works →ProductivityQR Remote
Use a compatible phone or tablet as a local SureAlign display and remote control at the adjustment point.
How it works →ProductivityCustomizable Reports
Adapt the alignment report to the workshop, customer and level of technical detail required.
How it works →Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Frequently asked questions
About the 9000 AIO.
What type of workshop is the 9000 AIO designed for?
It is designed for professional alignment bays where a fixed rack mounted directly to the camera post reduces the floor-space requirement.
Which SureAlign version is supplied with the 9000 AIO?
The current public configuration uses SureAlign™ V45 Pro. Available functions depend on the final hardware and regional package.
Can the 9000 AIO use tire-grip clamps?
Yes. QC15 and QC20 tire-grip clamps are available as optional configurations where compatible with the selected system package.
Talk with TreadPlus
Configure the 9000 AIO for your workshop.
Contact TreadPlus for regional availability, installation requirements, accessories, training, and support.
