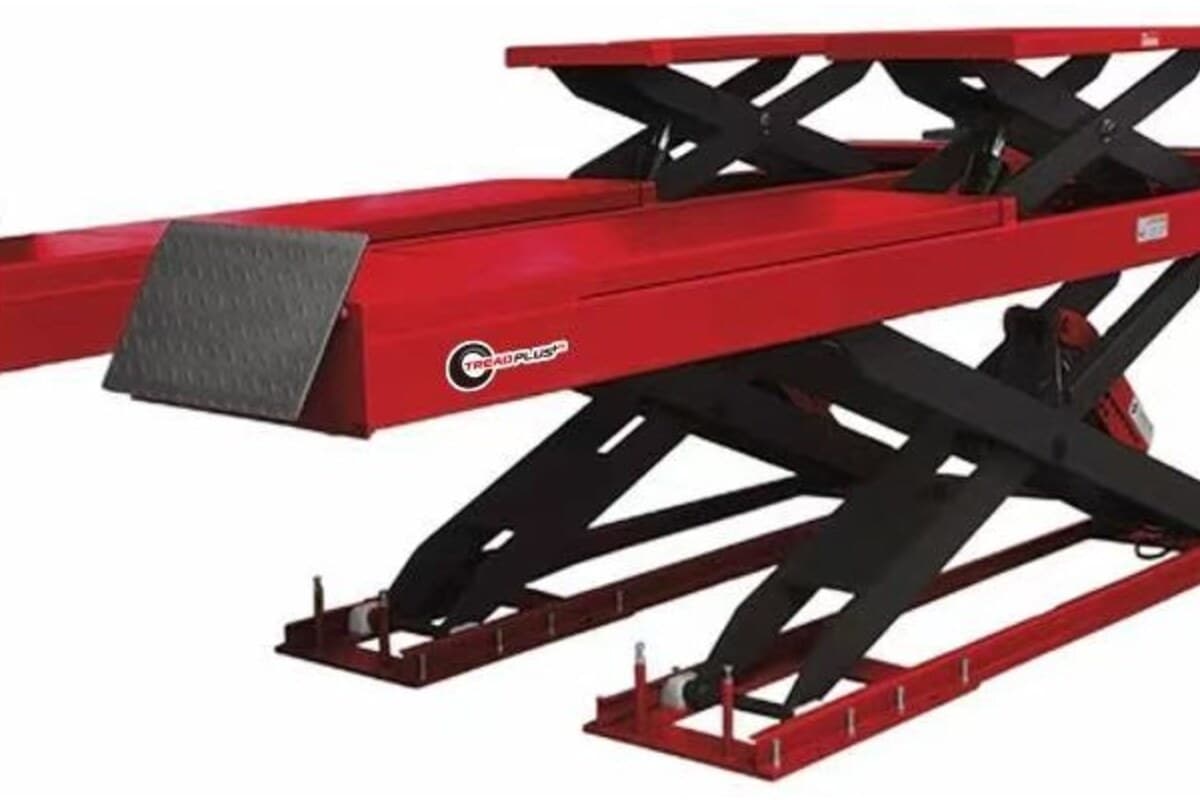

LIFT · Alignment scissor lift
SS1257
TreadPlus SS1257 alignment scissor lift for professional wheel alignment bays, with alignment-ready platforms and workshop support.
Product overview
Built for professional service.
TreadPlus SS1257 alignment scissor lift for professional wheel alignment bays, with alignment-ready platforms and workshop support. Final specifications and regional availability are confirmed with the quotation.
Published specifications
SS1257 at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Alignment-ready scissor lift
- Model
- SS1257
- Software / platform
- Lift integration ready
- Main lift capacity
- 5,500 kg / 12,000 lb
- Main platform length
- 5,700 mm
- Main platform width
- 670 mm per platform
- Initial height
- 380 mm
- Main lift lifting height
- 2,200 mm
- Sub-lift platform
- 1,550–1,850 mm adjustable length, 625 mm width
- Motor power
- 3 kW; 380V / 220V configuration by region
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.
Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Product documents are available through TreadPlus and its authorized partners.
Request documentationFrequently asked questions
About the SS1257.
What distinguishes the SS1257 from the SS1253?
The SS1257 uses a 5,700 mm main platform, providing 400 mm more deck length than the SS1253.
What is the main lift capacity?
The published capacity is 5,500 kg or 12,000 lb.
What is the published lifting height?
The main lift lifting height is listed at 2,200 mm.
