CHANGE · Professional tire changer
T823GDR

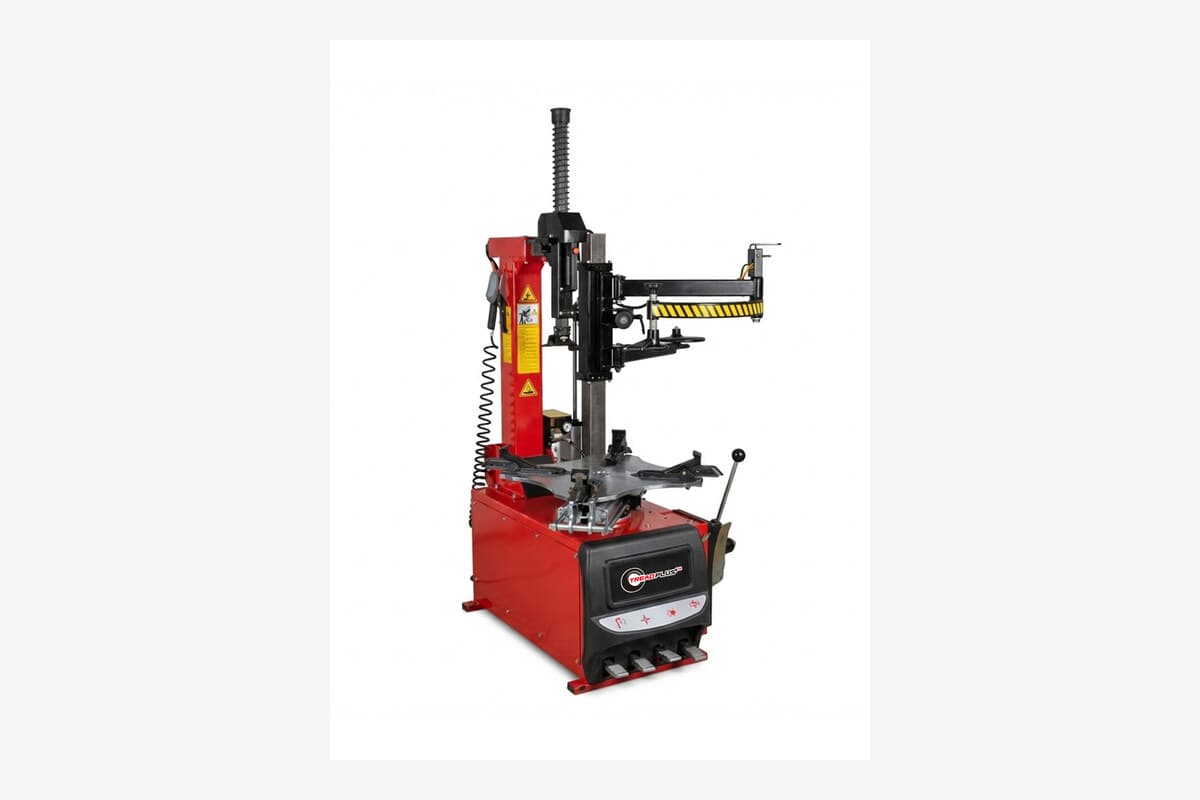

TreadPlus T823GDR automatic tilt-back tire changer with right assist arm for professional passenger and light-truck tire service.
Product overview
Built for professional service.
TreadPlus T823GDR automatic tilt-back tire changer with right assist arm for professional passenger and light-truck tire service. Final specifications and regional availability are confirmed with the quotation.
Published specifications
T823GDR at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Tire changer
- Model
- T823GDR
- Software / platform
- Tilt-back tire-changing workflow
- External rim mounting
- 10″–26″
- Internal rim mounting
- 12″–29″
- Maximum tire diameter
- 43″ / 1080 mm
- Maximum wheel width
- 13.7″ / 350 mm
- Working pressure
- 8–10 bar
- Net / gross weight
- 345 / 380 kg complete set with HELP arm
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.
Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Frequently asked questions
About the T823GDR.
What type of tire changer is the T823GDR?
It is an automatic tilt-back tire changer equipped with a right-side assist arm.
What is the published maximum tire diameter?
The current public specification lists a maximum tire diameter of 43 inches or 1080 mm.
What air pressure is required?
The published working-pressure range is 8–10 bar. Site air preparation should be confirmed before installation.
Talk with TreadPlus
Configure the T823GDR for your workshop.
Contact TreadPlus for regional availability, installation requirements, accessories, training, and support.
