INSPECT · Surface-mount tread depth scanner
TA100SMT
TreadPlus TA100SMT surface-mount tread depth scanner for drive-over tire inspection with TireMetric measurement and TreadScan reporting views.
Product overview
Built for professional service.
TreadPlus TA100SMT surface-mount tread depth scanner for drive-over tire inspection with TireMetric measurement and TreadScan reporting views. Final specifications and regional availability are confirmed with the quotation.
Published specifications
TA100SMT at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Tread depth inspection system
- Model
- TA100SMT
- Software / platform
- TireMetric™ with TreadScan™
- Measurement accuracy
- ±0.2 mm tread depth measurement
- Scan time
- Approximately 8 seconds per vehicle
- Installation type
- Surface mount; no pit or floor recess required
- Vehicle compatibility
- Passenger vehicles, light trucks, SUVs and crossovers
- Sensor technology
- Precision laser measurement
- Output
- Tread depth + traction report with color, basic and detailed viewing styles
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.
Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Product documents are available through TreadPlus and its authorized partners.
Request documentationFrequently asked questions
About the TA100SMT.
Does the TA100SMT require a floor pit?
No. It is the surface-mount configuration and is intended for sites that want to avoid a recessed installation.
What accuracy is published for tread depth measurement?
The current public specification lists ±0.2 mm tread depth measurement accuracy.
How are inspection results viewed?

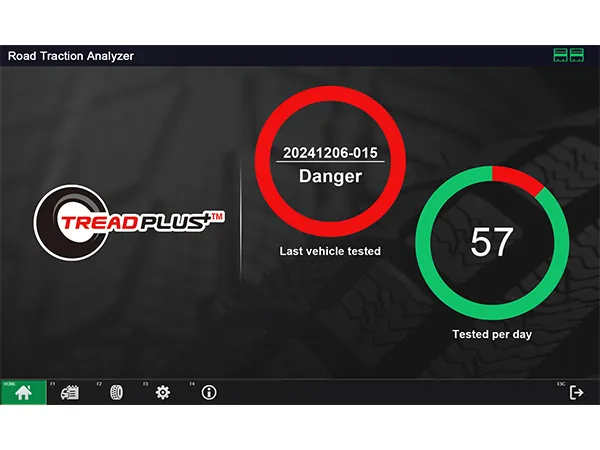

TireMetric™ processes the measurement and TreadScan™ presents color, basic and detailed report views with inspection history.
Talk with TreadPlus
Configure the TA100SMT for your workshop.
Contact TreadPlus for regional availability, installation requirements, accessories, training, and support.
