INSPECT · Flush-mount tread depth scanner
TA100FMT
TreadPlus TA100FMT flush-mount tread depth scanner for a low-profile tire inspection lane with TireMetric measurement and TreadScan reports.
Product overview
Built for professional service.
TreadPlus TA100FMT flush-mount tread depth scanner for a low-profile tire inspection lane with TireMetric measurement and TreadScan reports. Final specifications and regional availability are confirmed with the quotation.
Published specifications
TA100FMT at a glance.
These values are carried forward from the TreadPlus v4.0.9 production content. Confirm electrical, compliance, accessory, and installation requirements for your region before ordering.
- Product category
- Tread depth inspection system
- Model
- TA100FMT
- Software / platform
- TireMetric™ with TreadScan™
- Measurement accuracy
- ±0.2 mm
- Scan time
- 8 seconds
- Installation type
- Flush-mount, recessed into floor
- Operation
- Drive-over at low speed, max 10 km/h / 6 mph
- Measurement units
- mm or 1/32 inch
- Output

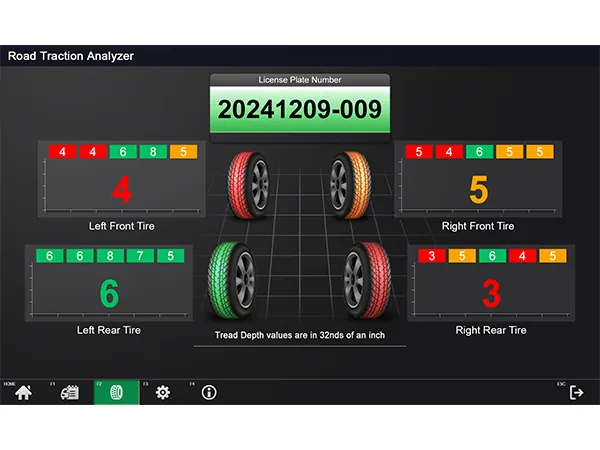

- Tread depth + traction score by wheel and zone
- Compliance and warranty
- Requirements and terms vary by region and configuration; confirm on quotation.
Product resources
Documents and support.
Access published product documents or contact TreadPlus for the documentation applicable to your configuration and market.
Product documents are available through TreadPlus and its authorized partners.
Request documentationFrequently asked questions
About the TA100FMT.
What is the difference between TA100FMT and TA100SMT?
TA100FMT is recessed into the floor for a flush lane surface, while TA100SMT is installed on top of the existing floor.
What is the published drive-over speed?
The current public specification lists low-speed operation up to 10 km/h or 6 mph.
Can results be shown in metric and imperial units?
Yes. The published configuration supports millimetres and 1/32-inch tread-depth display.
